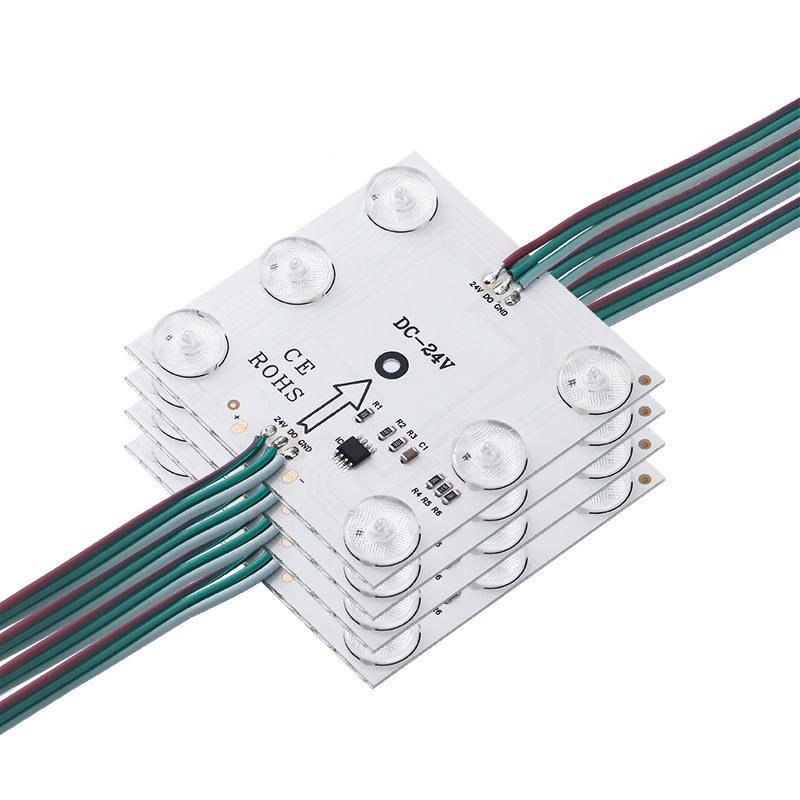

Diffuse Reflections Lens RGBW Pixel LED Module - Linear Modules with 6 LEDs - 24V - 20-Pack
Diffuse SPI RGBW LED modules use high-brightness 3030 LEDs controlled by TM1814 IC, realizing colorful dynamic lighting effects such as breathing light, flowing light, etc. Each string of module light contains 20 modules and each module includes 6 LED beads and one TM1814 IC. one IC controls six beads, enabling dynamic lighting effects. You can achieve these effects through an addressable controller or programming the IC directly.
Each led bead is equipped with an optical lens. The light is refracted many times in the lens to turn soft and uniform, effectively eliminating light spots. The 175 degrees beam angle can illuminate a wider area. The high CRI of this module ensures accurate and natural color representation. These features make it ideal for colorful lightboxes, channel letters and sign lightings.
Each module can be cut into individual units, making it ideal for irregular light boxes or DIY projects. In addition, it uses aluminum substrate with excellent heat dissipation performance, helping to extend the lifespan of the LEDs. The PCB size of the module is 70*70mm, but if you need a narrower width, we recommend the flexible lens strip.
A 24V power supply is required when using this diffuse reflective lens LED Module Light.
Features
1. The IC type is TM1814, each module has one IC.
2. The color is RGBW.
3. The beam angle is 175 degrees.
4. Can be cut every peice, making it ideal for adapting to irregular lightboxes.
5. 20pcs/string, every peice has 6 3030 LED beads.
6. The wire length between modules is 20cm/ 7.87in.
Specification
LED Strip Type: Diffuse Reflection Lens LED Module Lights
Wire Length: 20cm/PCS
Input Voltage: DC 24V
Size: 70mm*70mm
Power: 5W/PCS
IC Type: TM1814
IC Quantity: 1 Pix/PCS
LED Color: RGBW
LED Quantity: 6LEDs/PCS
Quantity: 20PCS/String
Cut: 1 Peice/Cut
Beam Angle: 175°
CRI: 85+
Material: Aluminum
LED Chip: 3030
Central Distance: 270mm/10.62in
Channel Timing: WRGB
Adhesive Backing： Yes
Related Items
Diffuse Reflections Lens RGB Addressable LED Module - Linear Modules with 6 LEDs - 24V - 20-Pack

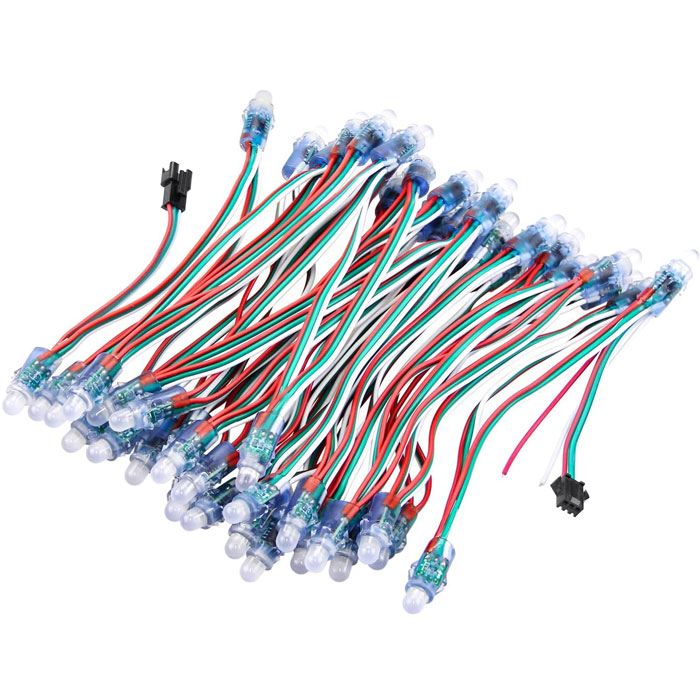

Addressable Digital LED Pixel Module String Lights, WS2811 LED Module, DC12V, 20PCS
